CNC Turret Punching Tools Grinding Machine

FOB Reference Price:Get Latest Price
$9,570.00 - $10,026.00 / Piece | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 5 >5
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)
Report Suspicious Activity
Overview
Quick Details
Slide Stroke (mm):
200
Nominal Force (kN):
750W
Machine Type:
H Frame Hydraulic Press
Return Force (kN):
750 kN
System:
SERVO
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
RS
Year:
2020
Voltage:
380V, 380V/50HZ/3P
Dimension(L*W*H):
820X820X1810mm
Certification:
CE
Weight (T):
0.6 T
Model Number:
RG-160
Motor Power (kw):
2.2 kw
Key Selling Points:
Multifunctional
Warranty:
1 YEAR
After-sales Service Provided:
Online support, Video technical support
After Warranty Service:
Video technical support, Online support, Spare parts
Applicable Industries:
Machinery Repair Shops, Manufacturing Plant, Construction works
Local Service Location:
canada, turkey, United States, ITALY, GERMANY, INDIA, spain, japan, malaysia, South Korea
Showroom Location:
canada, turkey, United States, ITALY, GERMANY, INDIA, spain, South Korea, japan, malaysia
Marketing Type:
Hot Product 2020
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 YEAR
Core Components:
Bearing, MOTOR, pump, PLC, Grinding Wheel,Chuck,Adaptor
Color:
Red
Grinding Diameter:
0.8-160mm
Max. Grinding Stroke:
200mm
Grinding Wheel Diameter:
135mm
Power of Main Motor:
2.2Kw, 2840 rpm
Motor of Rotating Table:
0.1 Kw, 1440 rpm
Measurement of machine(L x W x H):
820X820X1810mm
Weight of Machine:
600Kg
Air Requirement:
8mm dia,0.5Mpa
Packaging & Delivery
Port
Shen Zhen
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 5 >5
Est. Time(days) 30 To be negotiated
Video Description
Product Description
Technical Specification
Grinding Diameter
0.8-160mm
Max. Grinding Stroke
200mm
Grinding Wheel Diameter
135mm
Voltage
380V/50Hz/3P
Power of Main Motor
2.2Kw, 2840 rpm
Motor of Rotating Table
0.1 Kw, 1440 rpm
Servo motor
0.75KW
Cooling Motor
0.045Kw
Dimension(L*W*H)
820X820X1810mm
Weight of Machine
600Kg
Air Requirement
8mm dia, 0.5MPa
Ambient Temperature
0°-40°

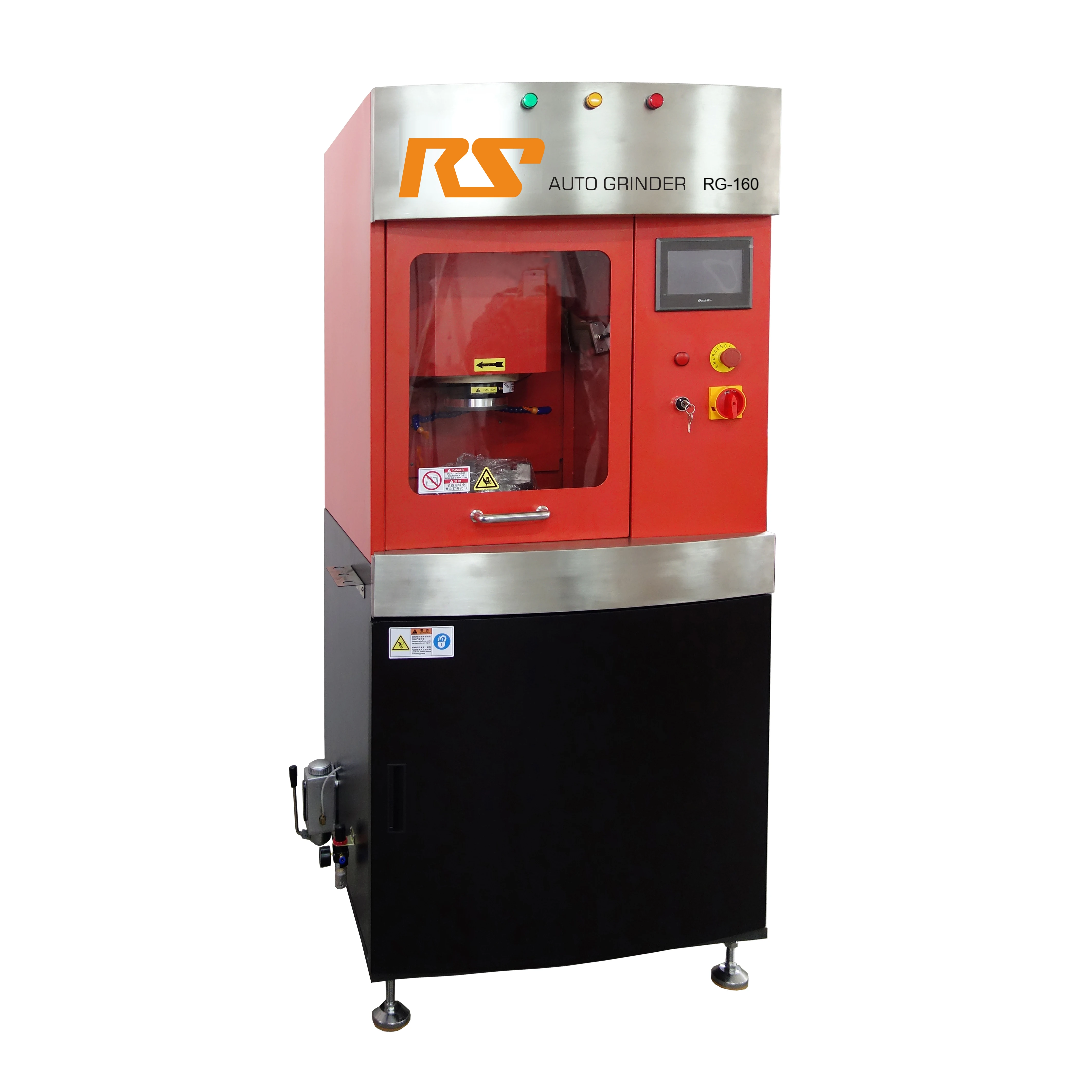

RG-160 Features
Flexibility&Convenience

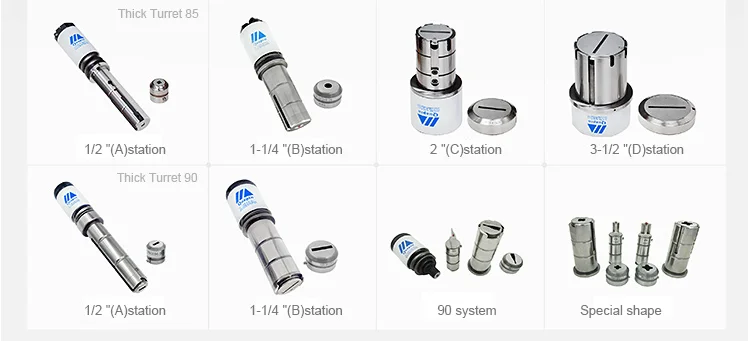

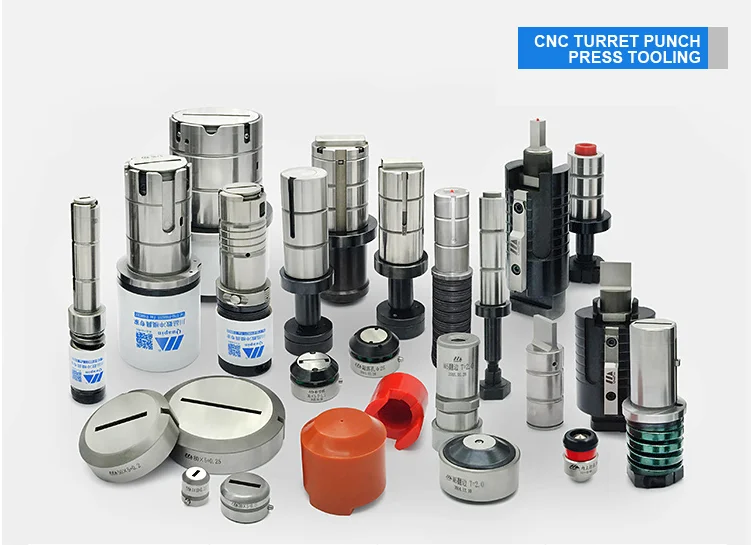

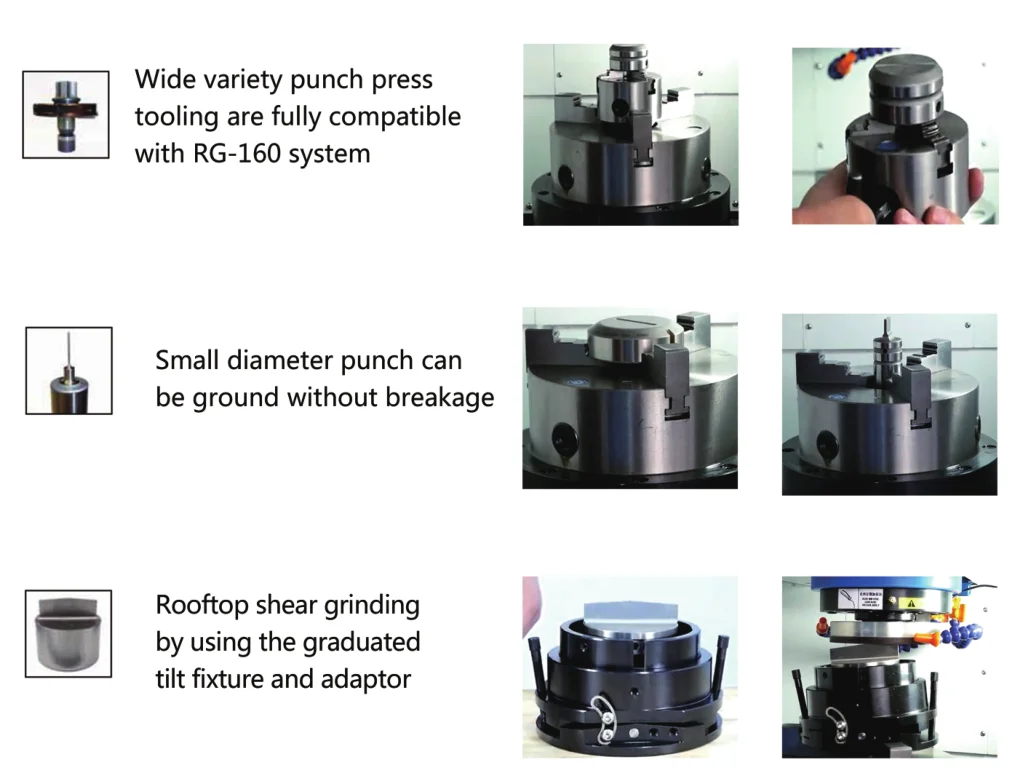

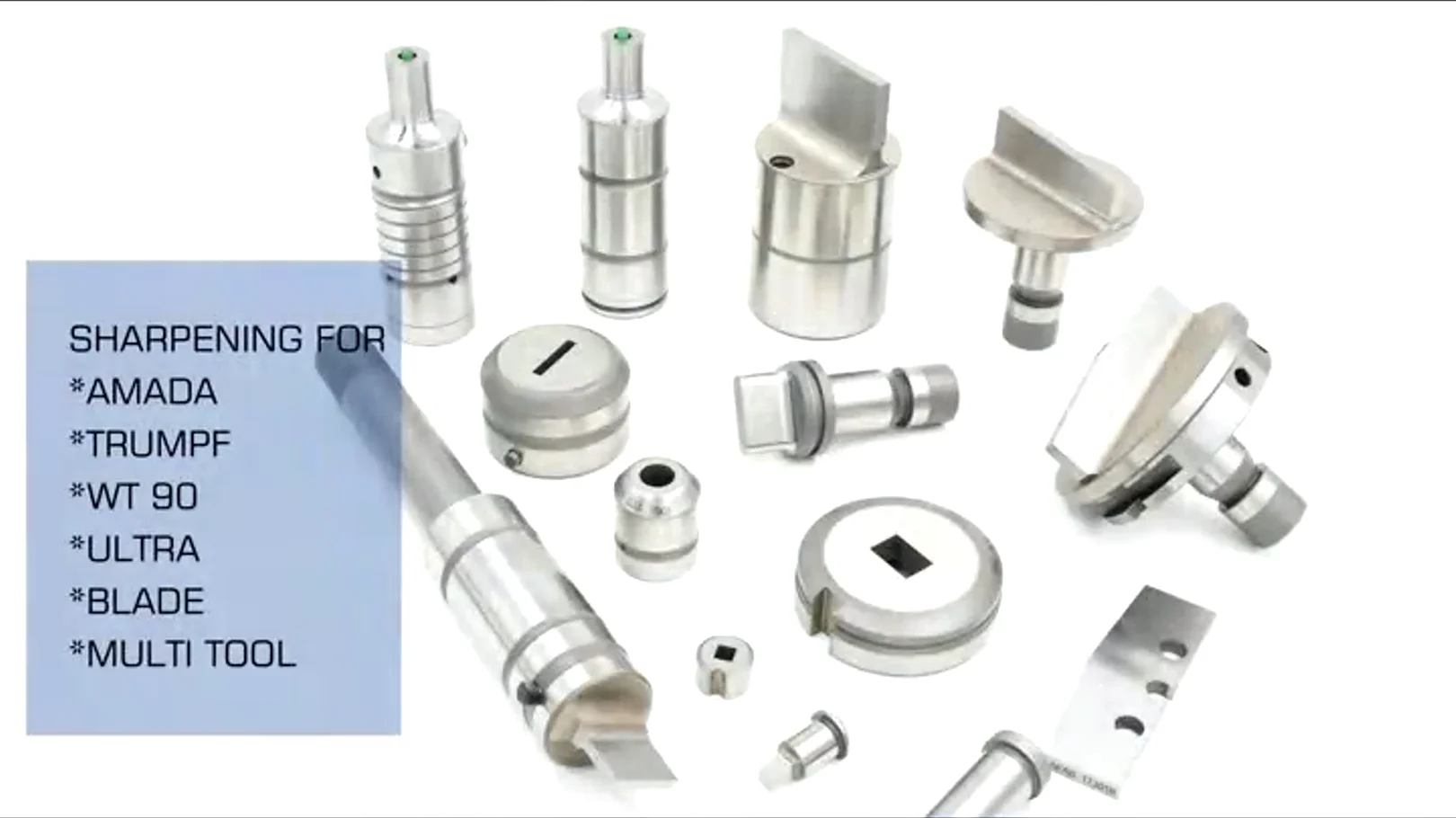

Fixture work for popular tooling (AMADA, TRUMPF, MULTI-TOOL, MURATA, SALVAGNINI)
Fine grind depth and removal rate setting provide flexibility, reliability and consistency


Safety

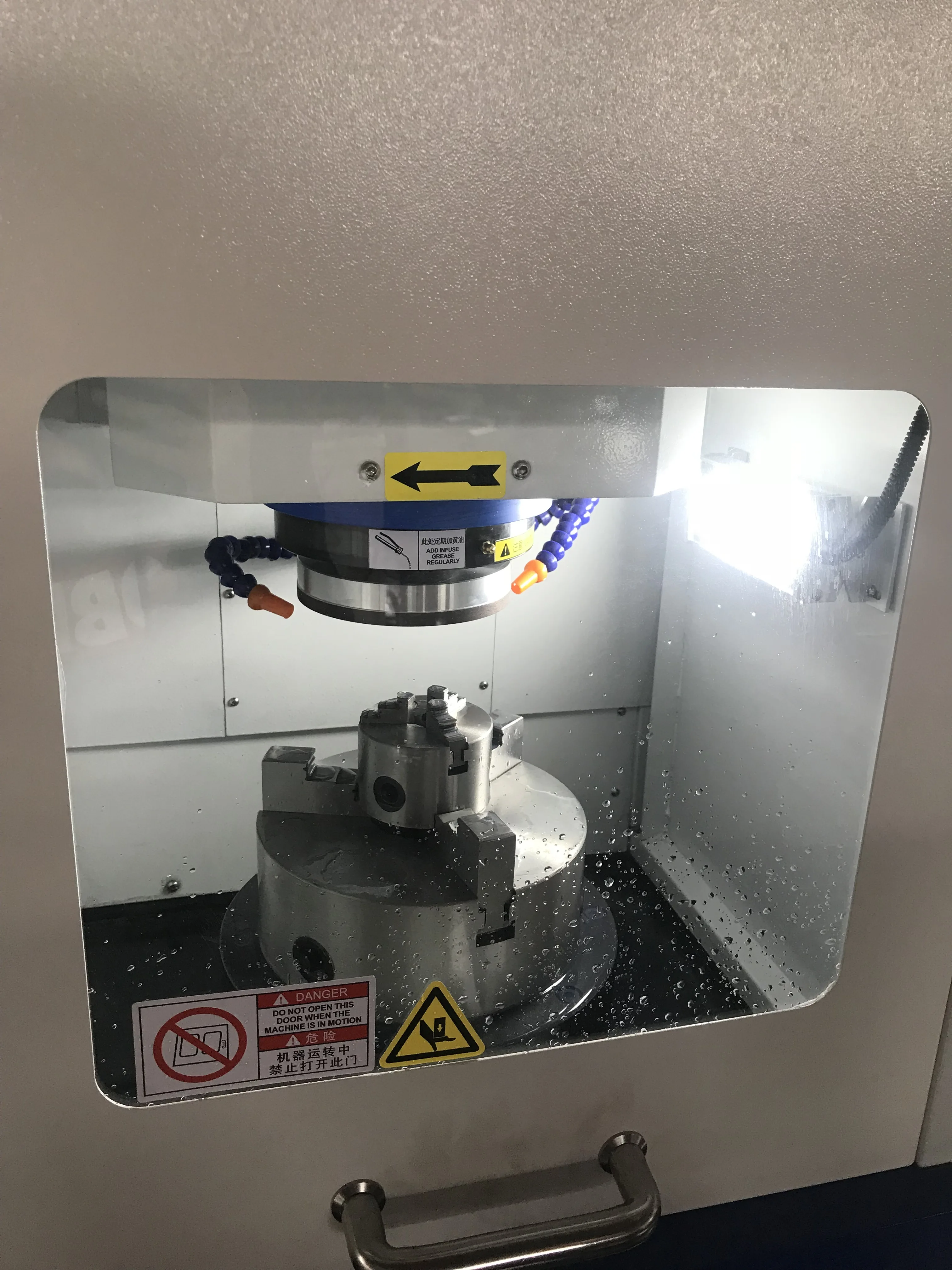

Fully enclosed work area ensure safety
Door interlock prevent RG-160 operation with door open
CE certified

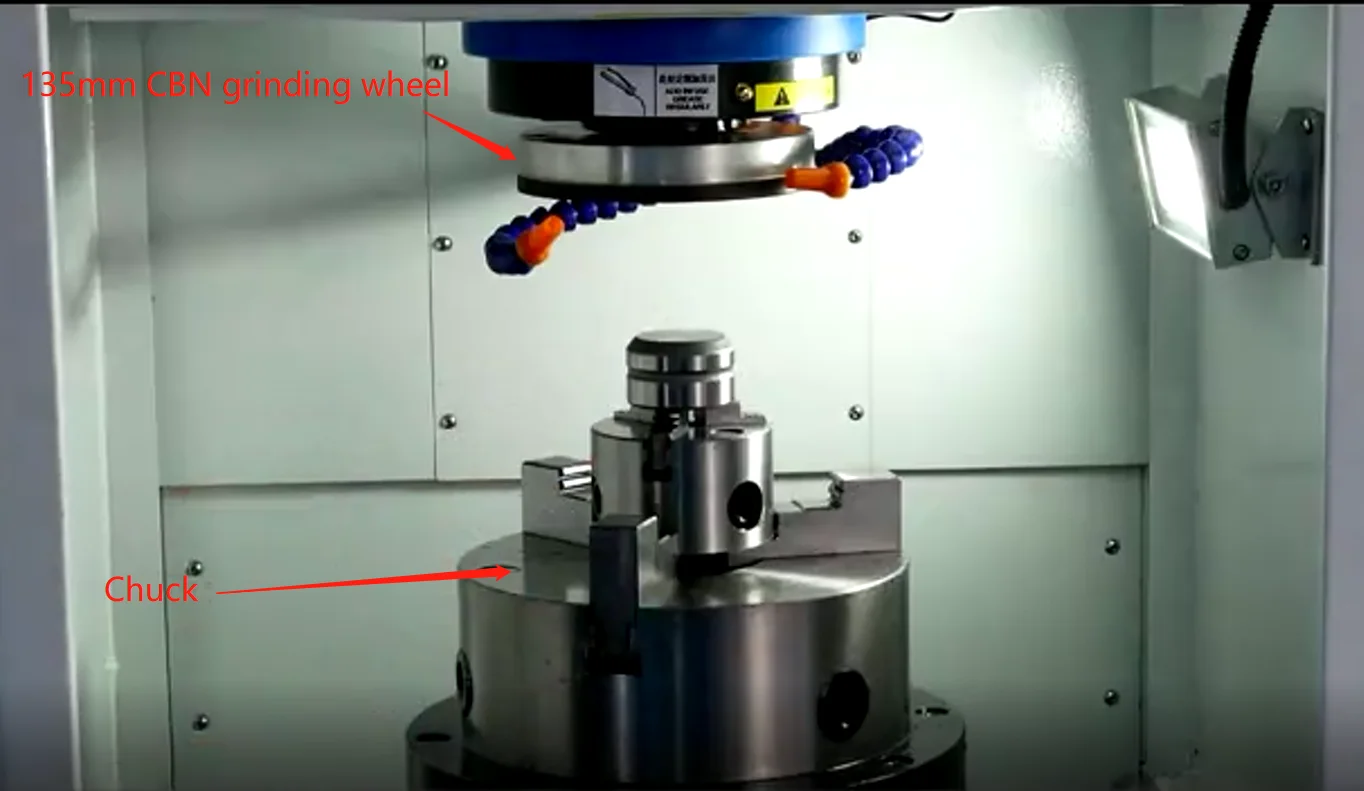

Solid surface 135mm CBN grinding wheel auto "start" optimizes performance

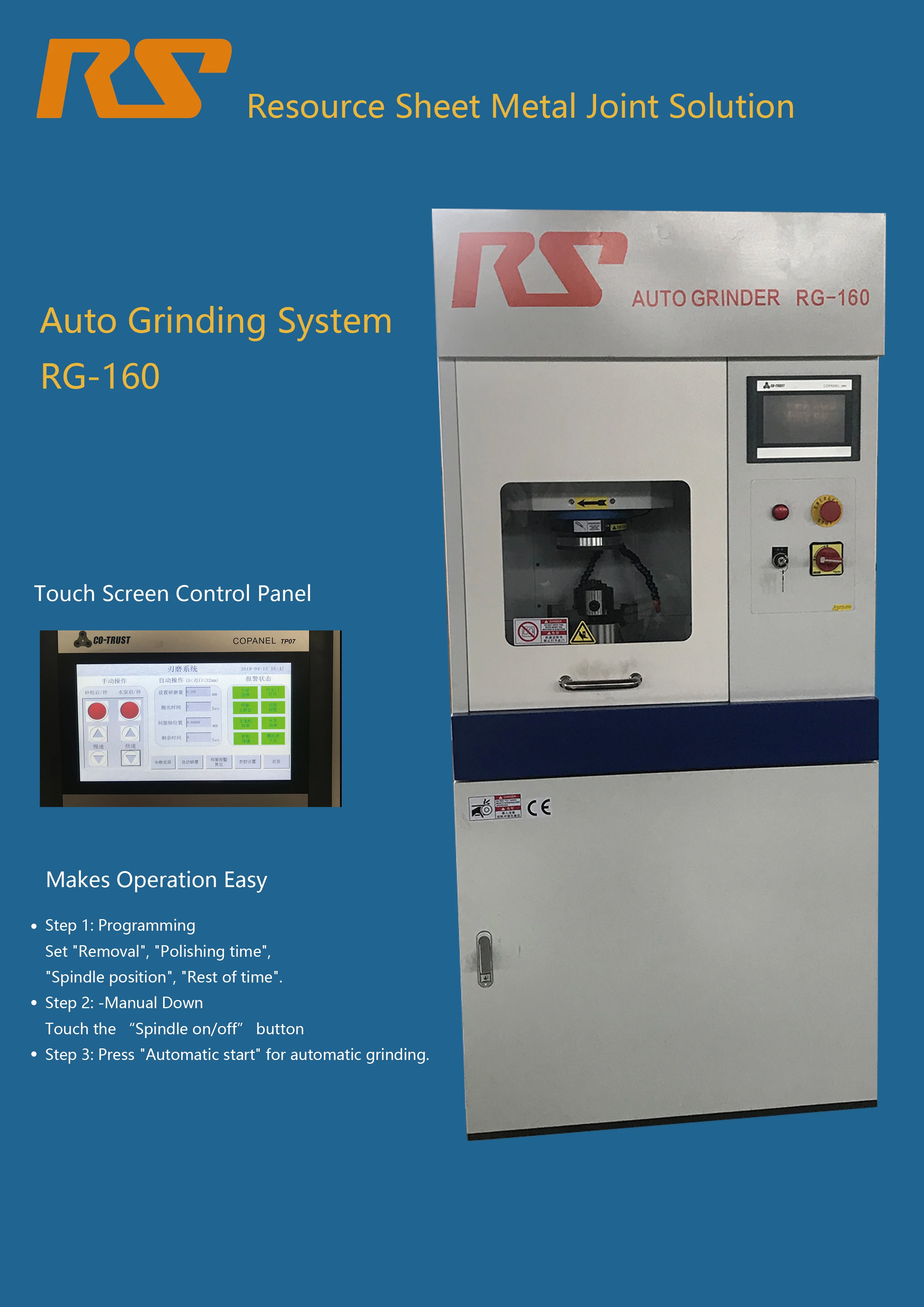

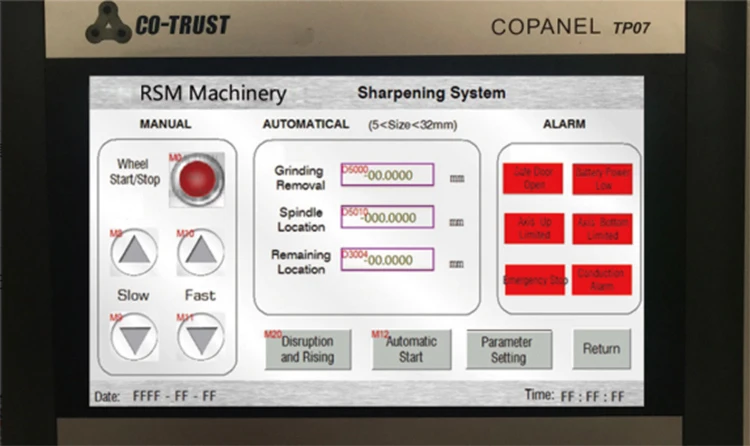

Easy Operation
Just press "start grinding" and RG-160 will sharpen the tools without assistance
Light signals when current grinding cycle is finished-no need to wait by machine
Auto"Start" to ensure consistency no matter who operate the machine








Automatic lubriction system & hand spray

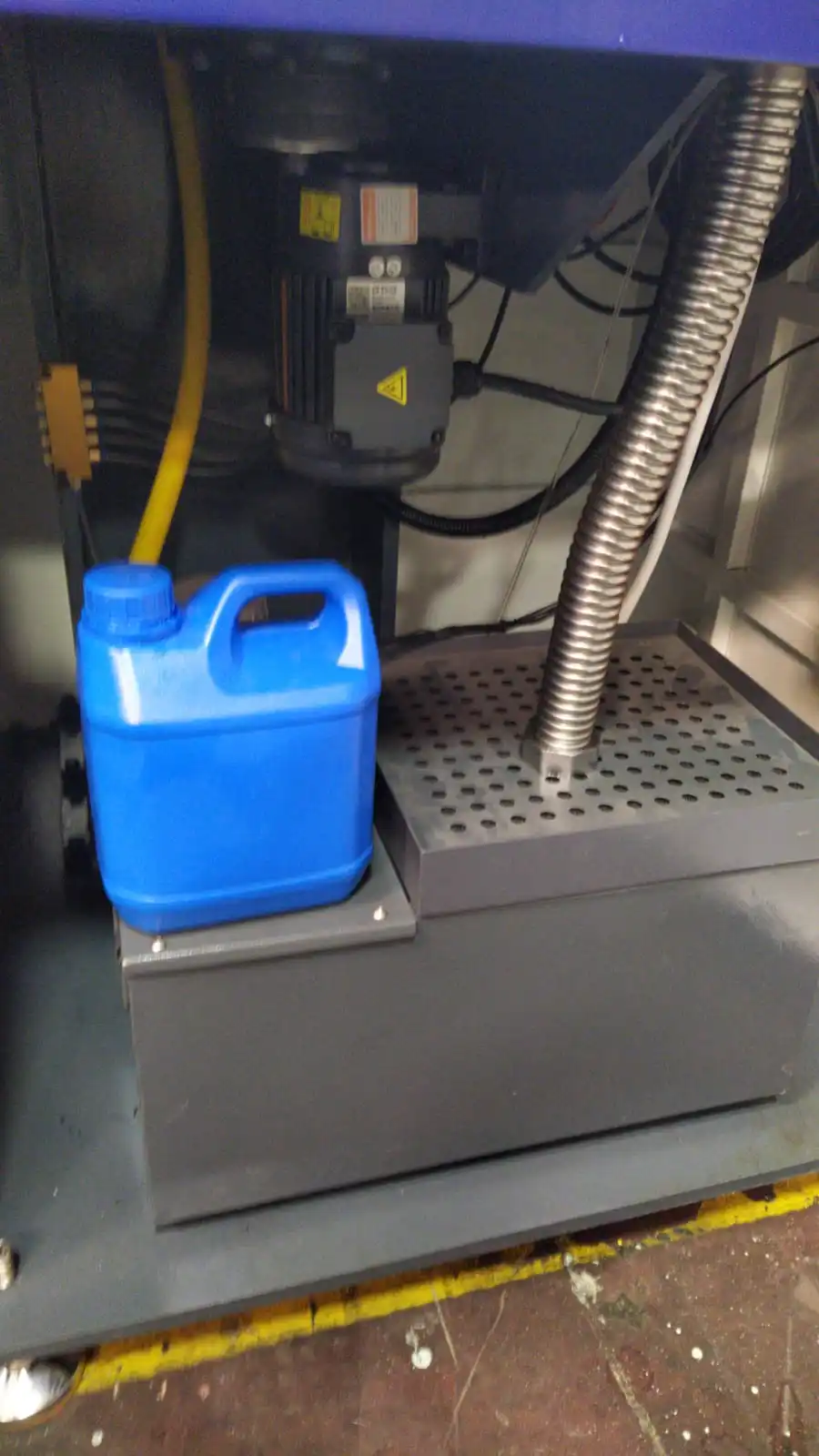

Stainless steel pipe coolant system with high quality filter
Applications

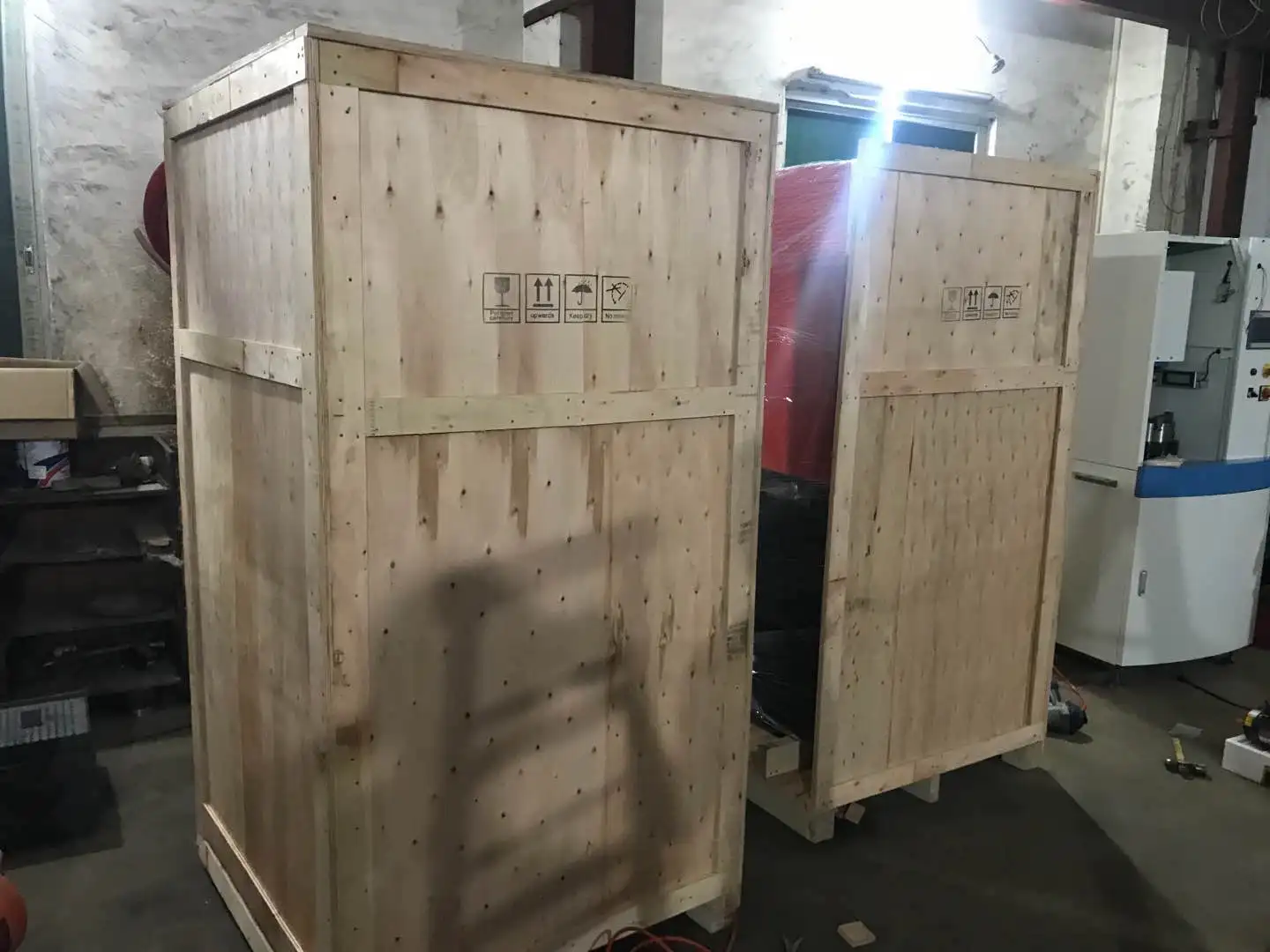

Packing and Shipping
Exhibitions
Exhibitions in Thailand
Exhibitions in Viet Nam
Exhibitions in USA
Company Introduction
RSM MACHINERY CO.LTD is one of the world leaders for innovative products and resource sheet metal joint solution industry.Our mainly products are: Fastener insertion machine,Self-clinching machine,Self-Piercing rivet machine,Fastener elements,Spot welder, etc.

RSM sales net is cover more than 30 countries around the world and had established over 20 distributors. RSM are well-equipped to deliver timely and reliable solutions for customers wherever and whenever required.
Packing List
No.
Description
Size & Remark
Quantity
1
Punch Die Grinder (Auto ) RG-160
Auto Punch Grinding Machine with CE
1
2
Accessory

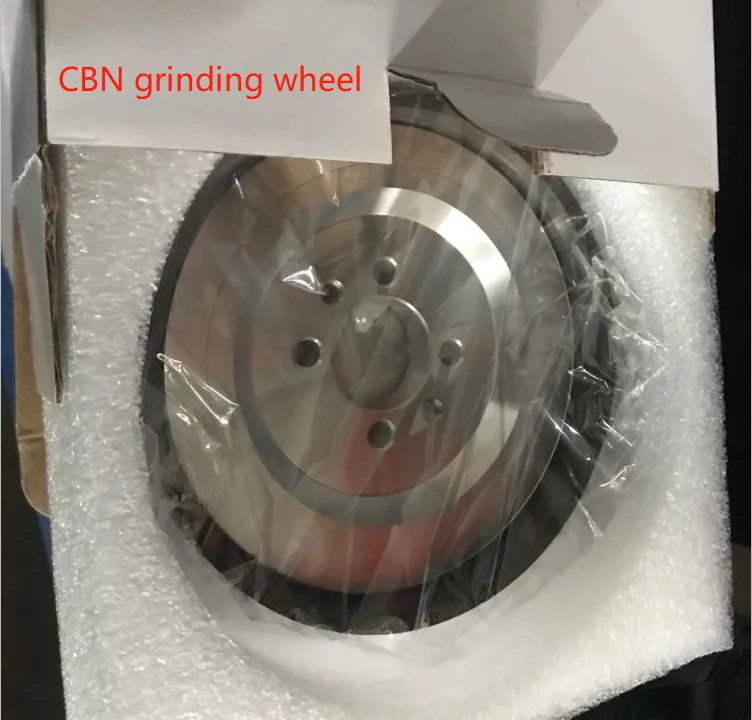

CBN grinding wheel (Installed on)
1
3
Accessory

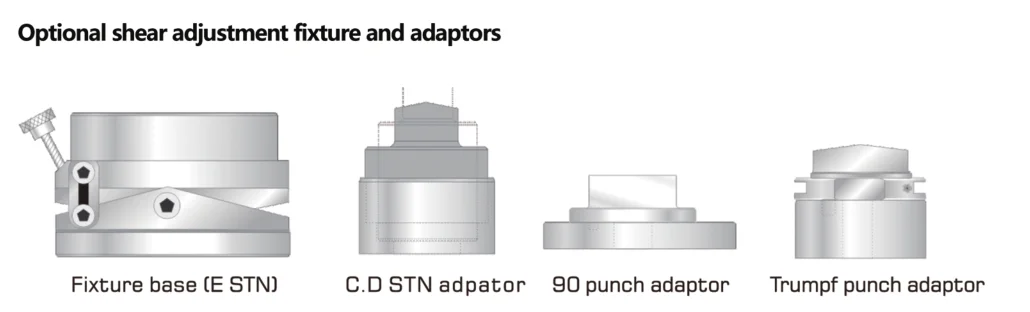

Fixture Base,E Station
1
4
Accessory
Roof Punch Adaptor (Amada / Finpower) C,D Station
1
5
Accessory
Roof Punch Adaptor (Trumpf)
1
6
Accessory
Roof Punch Adaptor Multitools(Trumpf),MT5/MT10
1
7
Accessory
Wooden package(export)
1
8
Accessory
Scroll chuck with diameter 80mm
1
9
Accessory
Scroll chuck with diameter 200mm(Installed on)
1
10
Accessory
200 mm Chuck handle
1
11
Accessory
80 mm Chuck handle
1
12
Accessory
Air gun (including 2M 8mm air pipe)
1
13
Accessory
Coolant
1
14
Accessory
Screw Driver
1
15
Accessory
Tool Box
1
