Auto Tooling System For Sheet Metal Screw Mount Machine

Work for PEM size nut/stud/standoff from M2-M6, efficiency is 3 times of manual tooling. It is possible to automatically divert, import and transport all kinds of fasteners without changing the automatic feeding system. Quick and easy mold change, providing up to 1200 pieces fastener feed/hour feed rate.


Modular Auto Feed System
- Including high quality vibration bowl and intelligent digital variable voltage and variable frequency Piezoelectric  vibration feeder controller.
- Single and constant working mode
- Integrate Vacuum generator
- Work with nuts,studs & standoff size M2-M12, length up to 30mm

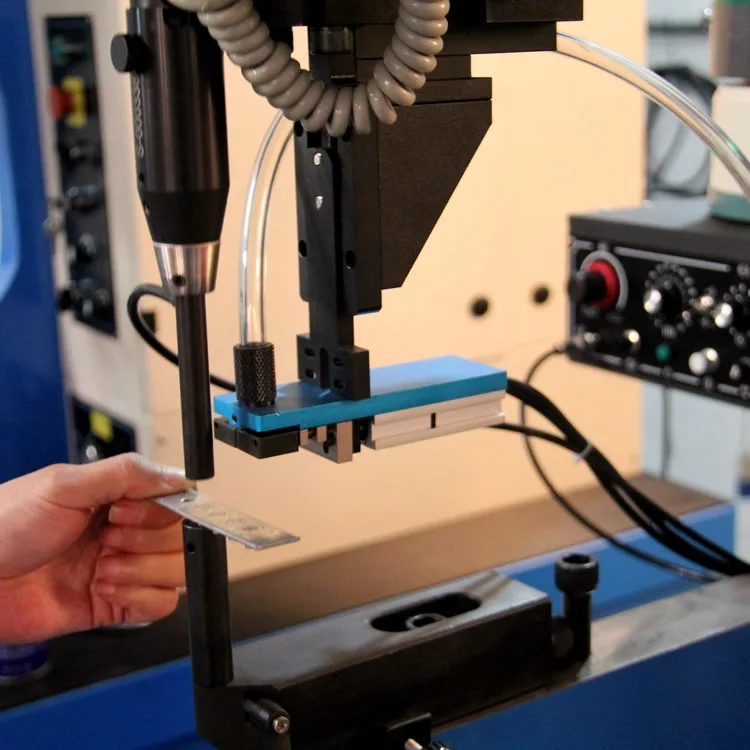

The Shuttle Platform provides a universal quick and easy tool change over between  nuts,studs, and standoffs-enabling 2-minute total changes without realignment.

Changeover between Manual and Automatic Tooling setup is faster and easier.

Notes:

1.  Pls specify your fastener size and supply Min 300 Pcs sample to us for testing and design the automatic tooling.

2.  A one time purchase of a Shuttle Nut Controller, T-bracket, and Vacuum Generator is included for Shuttle Nut Tooling Set.

3.  Pls specify machine model and serial number when ordering Shuttle Tooling Set as a retrofit item.

4.  CLA, CA Aluminum nuts are made to order tooling(Aluminum nuts are larger than steel nuts). Standard tooling will need to be modified.

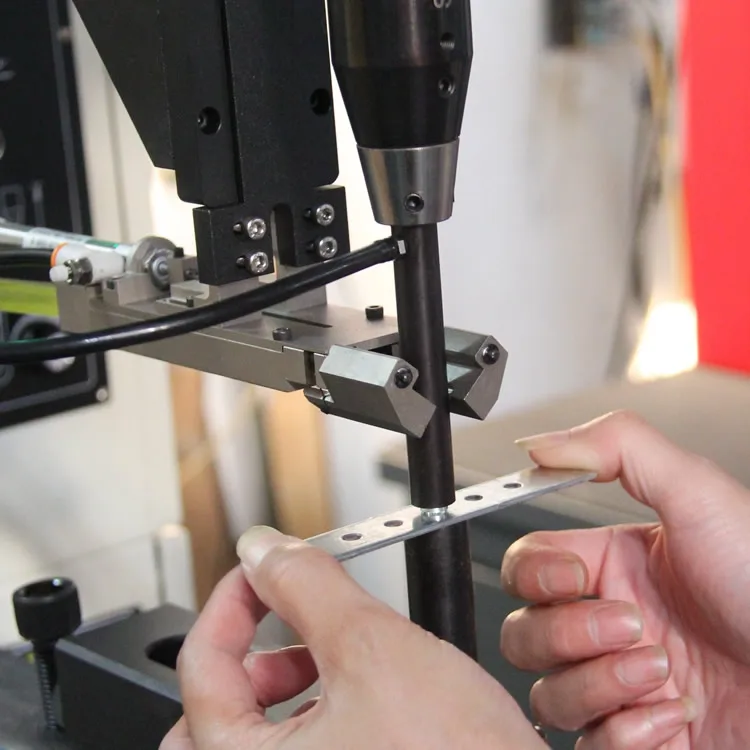

Automatic Bottom Feed Tooling(ABFT)For inserting nuts into flat parts as well as into hard-to-reach holes, Such as those on the underside of a flange. Automatic Bottom Feed is used for those difficult to reach flanges.






Shuttle Nut Tooling System Order Number :

Fastener Sizes(mm)
Shuttle Tooling Set
Shuttle Nut Controller
Autofeed Modular
Nuts S-M3-0,1,2
S-000354-3
S-000224
S-000440
Nuts S-M4-0,1,2
S-000354-4
S-000224
S-000440
Nuts S-M5-0,1,2
S-000354-5
S-000224
S-000440
Nuts S-M6-0,1,2
S-000354-6
S-000224
S-000440

Automatic Bottom Feed Tooling Order Number :

Fastener Sizes(mm)
Bottom Tooling Set
Autofeed Modular
Nuts S-M3-0,1,2
S-000350-3
S-000440
Nuts S-M4-0,1,2
S-000350-4
S-000440
Nuts S-M5-0,1,2
S-000350-5
S-000440
Nuts S-M6-0,1,2
S-000350-6
S-000440

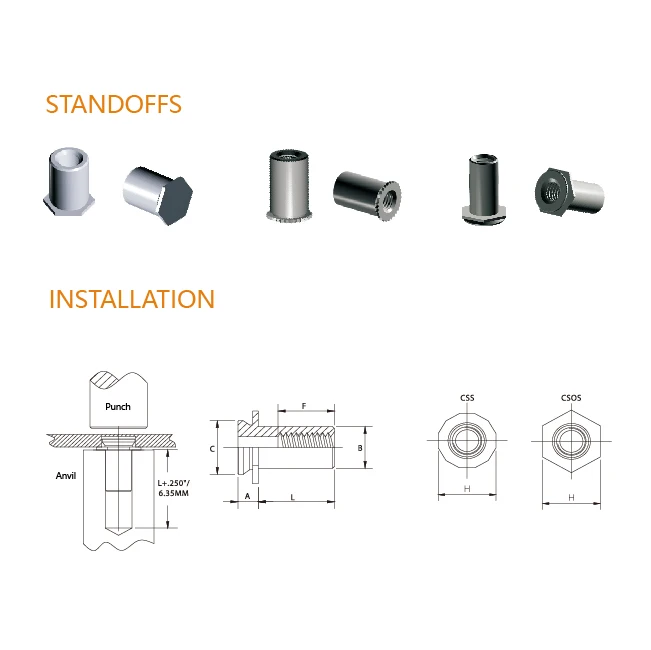

Standoffs Automatic Tooling System Order Number:

Fastener Sizes(mm)
Bottom Tooling Set
Autofeed Modular
SO-M3-8~25
S-000098-3
S-000440
SO-M3.5-8~25
S-000098-5
S-000440
SO-M4-8~25
S-000098-7
S-000440
SO-M5-8~25
S-000098-9
S-000440
Delivery

Delivery Time:
20-40 days after confirming order,detail delivery date should be decided according to production season and order quantity.
