618 Plus Fastener Insertion Press With Shuttle Nut & Standoff Set

FOB Reference Price:Get Latest Price
$11,000.00 - $15,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
RSM
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Sheetmetal Manufacturing
Place of Origin:
Shanghai, China
Brand Name:
RSM
Condition:
New
After-sales Service Provided:
Online support, Video technical support, Field maintenance and repair service
Warranty:
1 Year
Key Selling Points:
High Safety Level
Weight (KG):
700.00KG
Force:
54 KN
Numbers Of Inserts Per Hour:
1200
Throat Depth:
450 MM
Throat Height:
381 MM
Safety Device:
Yes
Dwell Time:
Standard
Ram Force Repaet Accuracy:
± 1%
Main Power:
2.2 KW
Net Weight:
650 KG
Power Supply:
380V/3P/50HZ
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export Plywood Box
Port
Any Port In China
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description
Main Features

618 Plus Fastener Insertion Press With Shuttle Nut & Standoff Set

- High stiffness, structure, high stability, less vibration, high accuracy

- Ergonomic design frame and different size tooling package with easy operation panel to meet most of the complex insertion process by single operator
- Quick press force setting and repeatability ±1%
- Ram force range MAX 54KN
- 100% safety system
- Standard Tooling Protection System
- Energy saving Re-design reliability and energy efficiency of a full hydraulic system
- Optional auto feeding system and clinching joint system
- Possibility to insert nut M10/standoff M8/stud M6 with the mild steel
- Standard power supply 3 phase 380v/50hz

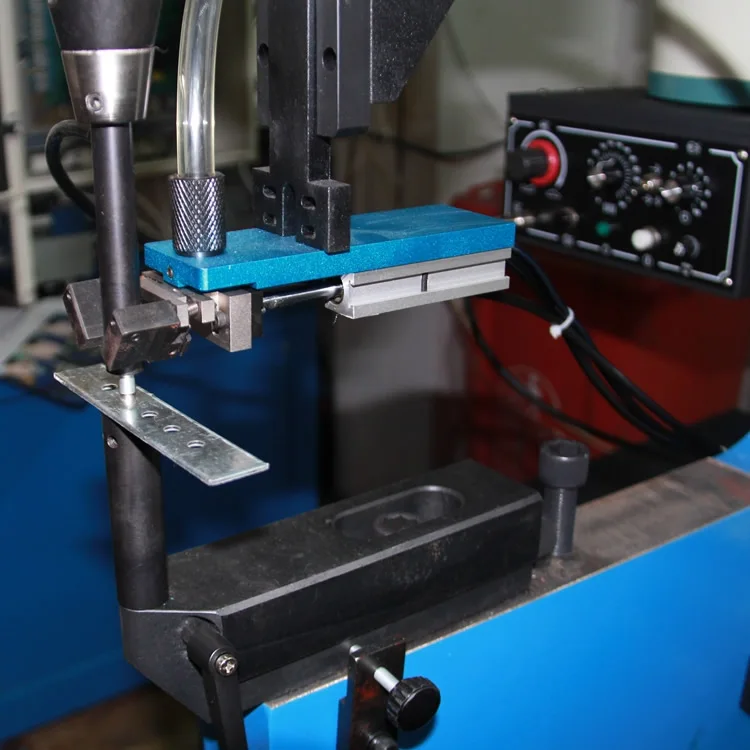

Modular Auto Feed System
Work for PEM size nut/stud/standoff from M2-M6, efficiency is 3 times of manual tooling. It is possible to automatically divert, import and transport all kinds of fasteners without changing the automatic feeding system. Quick and easy mold change, providing up to 1200 pieces fastener feed/hour feed rate.






Shuttle Nut Set Order Number:

Fastener Sizes(mm)
Shuttle Tooling Set
Autofeed Modular
Nuts S-M3-0,1,2
S-000354-3
S-000440
Nuts S-M4-0,1,2
S-000354-4
S-000440
Nuts S-M5-0,1,2
S-000354-5
S-000440
Nuts S-M6-0,1,2
S-000354-6
S-000440

Shuttle Standoff Set Order Number:

Fastener Sizes(mm)
Shuttle Tooling Set
Autofeed Modular
BSO-M3-8~25
S-000098-3
S-000440
BSO-M3.5-8~25
S-000098-5
S-000440
BSO-M4-8~25
S-000098-7
S-000440
BSO-M5-8~25
S-000098-9
S-000440
Packing & Delivery

Delivery Time:
20-40 days after confirming order,detail delivery date should be decided according to production season and order quantity.

About Us

RSM Machinery Co., Ltd.

Founded in 2011, is one of the world leaders in sheet metal high technology joint solution machine & process. We specialize in the research & development, manufacture & sales of high quality sheet metal joint machine. Our main products are Fastener Insertion Machine (LAG), Self-Clinching Press (SIMITCH), Seamless Spot Welding (PDKJ), and those machines are widely applied in electric appliance cabinet, panel, elevators, medical, household appliances, automobile and HVAC.

Whole team with rich work exoerience from famous industry company, more than 10 years experience in fastener insertion & clinching solution, customized application development, professional international trade team.

Our QC System runs through the entire material movement program, including input material inspection, machining line management, finished QC and complete machine testing to ensure the quality of every link in production.

Certification
We have gained internationally recognized patents and certificates that display as assurance and guarantee of quality and competence.

FAQ

Fastener Insertion Press
1,What size of nuts could fastener insertion 416/618/824 machine could press?
For the nuts/standoff/stud,we can make the press M3-M12.

2,If we have bought the manual fastener insertion, could we update to automatic machine easily?
Absolutely yes.

3,What is the difference between hydraulic fastener insertion machine and RSM fastener insertion machine?
Hydraulic drive is with energy saving and environment protection, if can reduce energy consumption by about 40% relatively pneumatic drive.

4,What is the Manual tooling package made of? And What is the function of the Manual tooling package?
33 pieces of manual work with nuts/studs/standoff different size of punch and dies M2-M8, length up to 35mm, special insertion application for small parts flange die holder and Manual J frame.

5,What is the main function of the fastener insertion machine?
Fastener insertion machine with the technology to provide strong, reusable and permanent the threads and mounting points in thin sheet metal.

6,What quick-wear part does Fastener insertion machine has?
Fuse, safety switch, relay, oil filter, die holder handle.

Main Options
1,How to choose BTM tooling?
Specify your joint parts material, thickness, drawing and supply min 10pcs sample to make the testing.

2,What is the function of Forward Limited?
Forward limited function is designed to protect both the tooling and workpiece from damage by positive stop cylinder.

3,How to choose Automatic tooling system?
For nut, either bottom or upper delivery; for standoff/stud, upper delivery. Please send at least 300pcs samples for us to make the testing.

4,Is it Automatic tooling system stable?
Yes, the automatic tooling system include high quality vibration bowl and intelligent digital variable voltage and variable frequency Piezoelectric vibration feeder controller.
