Online support, Video technical support, Field maintenance and repair service
Key Selling Points:
High Safety Level
Numbers Of Inserts Per Hour:
Stroke Length Adjustable:
50 Set/Sets per Month
Packaging & Delivery
Export Plywood Box
Any Port In China
1 - 1
To be negotiated
416 Plus Fastener Insertion System With 100% Insertion Qualified
- High stiffness, structure, high stability, less deformation, less vibration, high accuracy

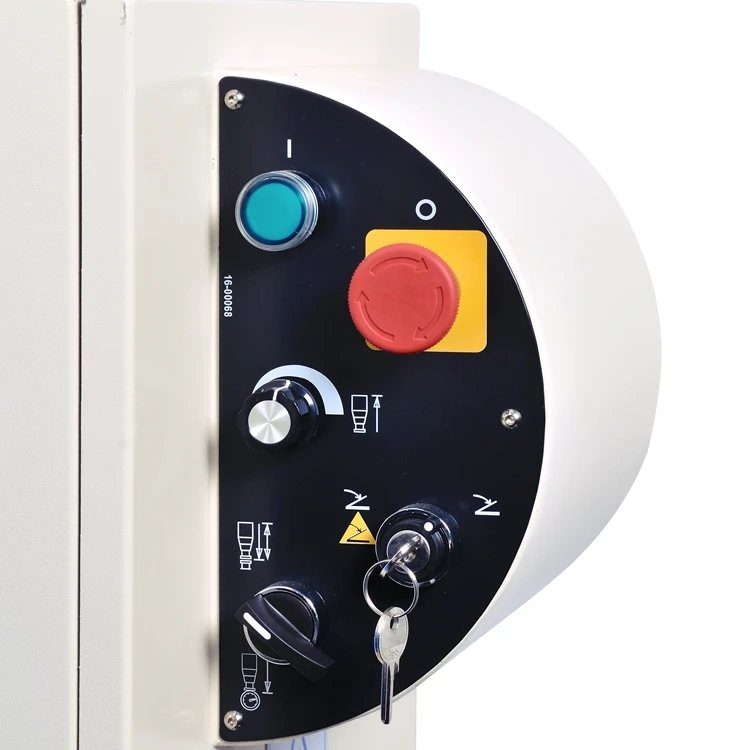

- Ergonomic design frame and different size tooling package with easy operation panel to meet most of the complex insertion process by single operator - Quick press force setting and repeatability ±1% - Ram force range MAX 44KN - 100% safety system - Energy saving Re-design reliability and energy efficiency of a full hydraulic system - Possibility to insert M8 nut with the mild steel - Standard power supply 220V/1P/50HZ
416 Insertion Machine System
618 Insertion Machine System
824 Insertion Machine System
Stroke Length Adjustable
Numbers Of Inserts Per Hour (Manually)
Manual Turret Insertion System (Optional)
Automatic Feeding System (Optional)
Clinching Joint System (Optional)
Batch Counter (Optional)
220V single phase 50HZ
380V 3phase 50HZ
380V 3phase 50HZ
Dimension (W*D*H) mm
Net Weight (Kg)
Packing & Delivery
Delivery Time: 20-40 days after confirming order,detail delivery date should be decided according to production season and order quantity.
RSM Machinery Co., Ltd.
Founded in 2011, is one of the world leaders in sheet metal high technology joint solution machine & process. We specialize in the research & development, manufacture & sales of high quality sheet metal joint machine. Our main products are Fastener Insertion Machine, Self-Clinching Press, Seamless Spot Welding, and those machines are widely applied in electric appliance cabinet, panel, elevators, medical, household appliances, automobile and HVAC.
Whole team with rich work exoerience from famous industry company, more than 10 years experience in fastener insertion & clinching solution, customized application development, professional international trade team.
Our QC System runs through the entire material movement program, including input material inspection, machining line management, finished QC and complete machine testing to ensure the quality of every link in production.
Certification We have gained internationally recognized patents and certificates that display as assurance and guarantee of quality and competence.
Turret Insert System
Turret Insertion System
Turret Insertion System
Nut Insertion Press 1,What size of nuts could nut insertion 416/618/824 machine could press? For the nuts/standoff/stud,we can make the press M3-M12.
2,If we have bought the manual nut press, could we update to automatic machine easily? Absolutely yes.
3,What is the difference between hydraulic nut insertion press and LAG nut insertion press? Hydraulic drive is with energy saving and environment protection, if can reduce energy consumption by about 40% relatively pneumatic drive.
4,What is the Manual tooling package made of? And What is the function of the Manual tooling package? 33 pieces of manual work with nuts/studs/standoff different size of punch and dies M2-M8, length up to 35mm, special insertion application for small parts flange die holder and Manual J frame.
5,What is the main function of the nut insertion press? Nut insertion press with the technology to provide strong, reusable and permanent the threads and mounting points in thin sheet metal.
6,What quick-wear part does nut insertion press has? Fuse, safety switch, relay, oil filter, die holder handle.
Main Options 1,How to choose BTM tooling? Specify your joint parts material, thickness, drawing and supply min 10pcs sample to make the testing.
2,What is the function of Forward Limited? Forward limited function is designed to protect both the tooling and workpiece from damage by positive stop cylinder.
3,How to choose Automatic tooling system? For nut, either bottom or upper delivery; for standoff/stud, upper delivery. Please send at least 300pcs samples for us to make the testing.
4,Is it Automatic tooling system stable? Yes, the automatic tooling system include high quality vibration bowl and intelligent digital variable voltage and variable frequency Piezoelectric vibration feeder controller. Dear all customers: The prices, products informations and other contents which showed on the ALIBABA just for reference only. The final sales will be based on the mutual agreements, thanks for your kindly attentions! 416 Plus Fastener Insertion System With 100% Insertion Qualified
