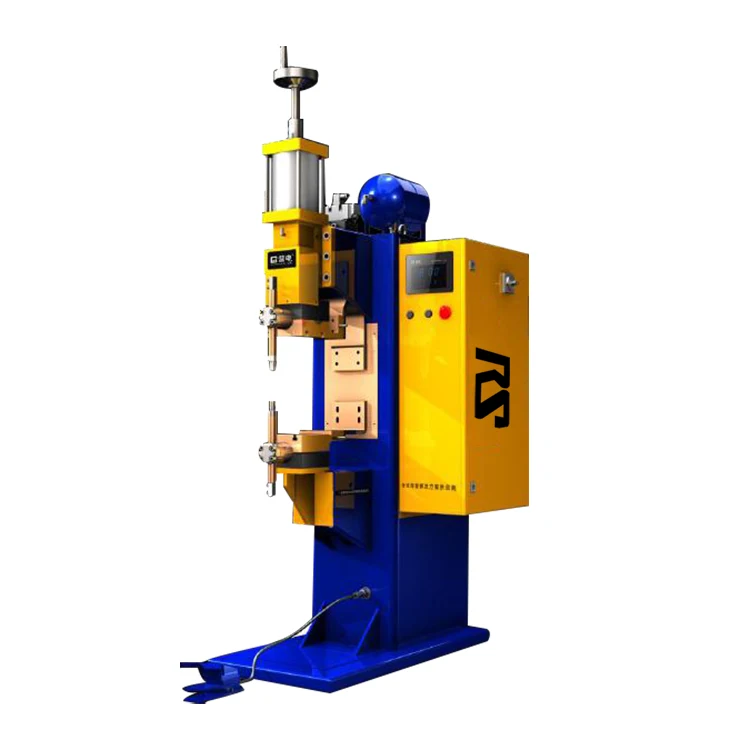

Intermediate-frequency Inverse DC spot (projection) welding machine

FOB Reference Price:Get Latest Price
$14,000.00 - $15,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
DR-3000
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
RSM
Rated Duty Cycle:
20%
Max. Welding Thickness:
2.0+2.0mm
Dimensions:
1105*670*1720mm
Usage:
Spot Welding
Voltage:
380V
Power(W):
0.75KVA
Certification:
CCC
Warranty:
3 Years
Color:
Blue + Yellow
Input power supply:
380V
Input power:
0.75KVA
Arm extension:
500*250mm
Electrode stroke:
60mm
Welding capacity:
2.0+2.0mm
Overall size:
1105*670*1720mm
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export wooden box
Port
Shanghai
Product Description



Intermediate-frequency Inverse DC spot (projection) welding machine



Machine Features:

•       The fully digital touch human-machine interface control mode is simple and convenient to operate,and the computer can become the performance of the expanding welder.

•       The unique charging circuit and control system design can control the current fast response and output current more accurately.

•       The instantaneous power consumption from the power grid is low,which has little impact on the power grid,low use cost,and energy saving and high efficiency.

•       There are few oxidation and deformation on the surface of solder joints,and the solder joints are not black,and the grinding process is omitted.

•       It has functions of system protection and fault indication,exception and fault code display.

•       It is widely used in automobile manufacturing,hardware and electrical appliances,electronics,electrical appliances and other manufacturing industries with good conductive and thermal conductivity of non-ferrous metal welding.

Technical Parameters:

Model

DR-3000

DR-6000

DR-10000

Capacitance

3000uf

6000uf

10000uf

Input power supply

1Φ 380V

1Φ 380V

1Φ 380V

Output energy

300W.S.

600W.S.

1000W.S.

Arm extension

500*250mm

450*350mm

450*350mm

Maximum pressure

6000N

10000N

10000N

Electrode stroke

60mm

100mm

100mm

Cooling water flow

12L/MIN

12L/MIN

12L/MIN

Welding capacity/stainless steel plate

2.0+2.0MM

2.5+.2.5MM

3.0+3.0MM

Shape size

1105*670*1720mm

1180*910*2140mm

1180*910*2140mm



Application:

1.  Transportation equipment industry

2.  Electronics manufacturing industry

3.  The elevator sheet metal manufacturing industry

4.  Communication electrical manufacturing industry

5.  New energy power battery

6.  Furniture and kitchen utensils manufacturing

7.  Metal metal products industry

8.  Mechanical line network industry, etc.



Main product:

•       Medium frequency inverter DC point (convex) welding machine

•       lnverter AC DC point (convex) welding machine

•       Platform type medium frequency inverter spot welding machine

•       AC point (convex) welding machine

•       Desktop AC precision spot welding machine

•       Desktop intermediate frequency inverter Precision spot welding machine

•       Movable suspension spot welder

•       Capacitive energy storage point (convex) welding machine

•       Customizing all kinds of automatic welding machine

•       Robot welding system



Welding Samples:
